Iphaneli Yesandwich Yengilazi Yensimbi Enombala | I-A1 Engangenisi Umlilo Nokumuncwa Komsindo, Udonga Nophahla Olulungisiwe Lwezakhiwo Zensimbi

1. Ukubuka Konke Komkhiqizo

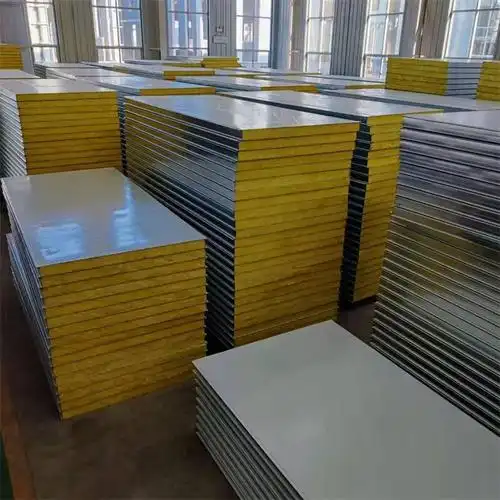

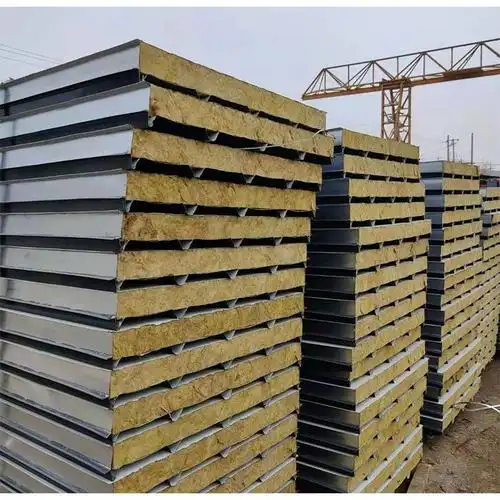

Iphaneli Yesangweji Yengilazi Yensimbi Enombala iyiphaneli yesangweji yensimbi esezingeni eliphezulu enobuso bensimbi, ethuthukiswe ngokukhethekile njengesixazululo sokuvala esakhelwe ngaphambili sezakhiwo zesimanje zensimbi. Yakhiwe ngokuhambisana ngokuqinile nendinganiso kazwelonke ye-GB/T 23932 yokwakha amaphaneli esangweji okushisa, leli phaneli lisebenzisa isakhiwo esihlanganisiwe samashidi ensimbi ambozwe ngombala ophindwe kabili kanye nengaphakathi lengilazi yoboya obunobukhulu obuphezulu. Ibunjwe ngokujulile ngezinqubo zokubopha ezizenzakalelayo zokucindezela okuphezulu kanye nokushisa okuphezulu.

Ihlanganisa ukumelana nomlilo kwe-Class A okungashi, ukumuncwa komsindo okuphezulu, ukuvikela ukushisa okuzinzile, ukuvalwa okungangeni manzi okuthembekile, amandla alula okuthwala umthwalo kanye nokumelana nesimo sezulu isikhathi eside, iphaneli inekhwalithi ephezulu yesakhiwo, ukungabi nomoya okuhle kakhulu kanye nokufakwa okuphumelelayo kakhulu endaweni. Igxile ekunciphiseni umsindo kochwepheshe kanye nokusebenza kahle kokuvala okuphephile emlilweni, isetshenziswa kabanzi emakamelweni emishini, ama-workshop angangeni msindo, amafektri esakhiwo sensimbi esikhulu kanye namaphrojekthi okuvimba umsindo wangaphandle, okusebenza njengezinto zokwakha ezithule nezingangeni mlilo ezifanelekile.

2. Ukwakheka Kwesakhiwo Esiyinhloko

Ishidi Lomphezulu Wensimbi
Yakhiwe ngamashidi ensimbi agqitshwe ngombala noma nge-aluzinc asezingeni eliphezulu. Isembozo se-zinc esijwayelekile esinamaceleni amabili sifinyelela ku-≥80g/㎡, esingathuthukiswa sibe yi-≥180g/㎡ ezindaweni zangaphandle ezinzima nezigqwalisayo. Izingxenye ezitholakalayo zifaka i-DC51D ne-S250GD, ezihambisana nesembozo se-PE, HDP kanye ne-PVDF esimelana nesimo sezulu. Ukwakheka kwe-roll okunembile kunikeza indawo eyisicaba, ebushelelezi enokumelana okuhle kwe-asidi ne-alkali, ukuqina kwe-UV kanye nokusebenza okulwa nokuguga, okuvimbela ngempumelelo ukufiphala kwesikhathi eside, ukuxebuka kanye nokugqwala kwendawo.

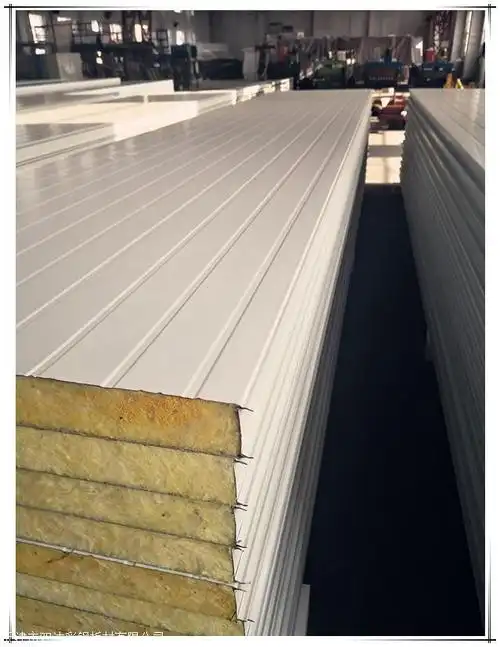

Umgogodla We-Glass Wool Oqinile
Isebenzisa i-fiber yoboya yengilazi ecolekile kakhulu enobukhulu obungu-≥64kg/m³, i-core ifinyelela ukusebenza okugcwele kwe-GB 8624 Class A okungashi. Isakhiwo sayo se-fiber yemvelo evuvukele sinikeza ukusebenza kahle kokumunca umsindo okuhle kakhulu kanye nokuqhuba okuzinzile kokushisa okuphansi. Izinto eziyinhloko azinayo i-formaldehyde futhi zinobungani nemvelo, zifaneleka ngokuphelele ekushiseni okungaphakathi nangaphandle kwesikhathi eside, kumaphrojekthi obunjiniyela obungashisi umlilo kanye ne-acoustic.

Isakhiwo Esixhumene Nolimi Nomsele Ngokuqondile
Iqukethe ukwakheka okujwayelekile kwejoyinti yokuhlangana kwendoda nowesifazane ukuze kuhlanganiswe kahle futhi kungenamthungo. Isakhiwo esihlanganisiwe esilungiselelwe kahle sivimba ngempumelelo ukuvuza komoya, ukungena kwamanzi, ukulahlekelwa ukushisa kanye nokudluliselwa komsindo, siqinisekisa ukuthi isakhiwo asingeni moya, ukuqina kwamanzi, ukuvimbela ukushisa kanye nokusebenza kahle kokuvimbela umsindo kwezinhlelo eziphelele zokuvala izakhiwo.

3. Izici Zomkhiqizo Eziyinhloko

Ukuthobela Ikhodi Yomlilo Engashisi Futhi Egcwele Yekilasi A
Ingaphakathi loboya beglasi elihlanganisiwe lihlangabezana nezindinganiso ze-GB 8624 Class A ezingashi, linikeza ukusebenza okungenantuthu, okungenabuthi kanye nokumelana nokushisa okuphezulu ngesikhathi sokuchayeka emlilweni. Njengephaneli yokuhlukanisa esezingeni lobuchwepheshe, ivimbela ngempumelelo ukusabalala komlilo kanye nokuqhutshwa kokushisa, ihlangabezana ngokugcwele nezidingo zokuhlolwa komlilo kanye nokwamukelwa kokwakha izingxenye zomlilo kanye nezindonga zokuhlukanisa.

Ukumuncwa Komsindo Nokunciphisa Umsindo Okusebenza Kakhulu
Yakhelwe izimo zokushisa ze-acoustic zobungcweti, isakhiwo sefayibha enesimbobo simunca kahle futhi sihlukanise umsindo osemoyeni nge-coefficient yokunciphisa umsindo i-NRC ≥0.8. Inciphisa kakhulu ukudluliselwa komsindo phakathi kwezikhala zangaphakathi nezangaphandle, okwenza kube yiphaneli elifanele kakhulu lezindawo ezizwela umsindo njengamakamelo emishini yemishini kanye nama-workshop okukhiqiza athule.

Isakhiwo Esilula kanye Nokushintshwa Okuzinzile Kokonga Amandla
Isakhiwo esihlanganisiwe esilula sinciphisa ngempumelelo umthwalo wesakhiwo ongapheli kanye nengcindezi yesisekelo. Uma sivivinywa ekushiseni okumaphakathi okungu-25℃, ukuhanjiswa kokushisa okuyinhloko kulawulwa ngaphakathi kwe-≤0.043W/(m·K), okunikeza ukusebenza kokuvikela ukushisa okuqhubekayo kanye nokunciphisa ukusetshenziswa kwamandla omoya opholile kanye nokushisa kwaminyaka yonke.

Ukuvalwa Okuqinile Nokusebenza Okungangenwa Manzi Okuthembekile
Isakhiwo esinobunono sokukhiya ulimi nomsele, esihambisana nobuchwepheshe bokufaka uphahla olufihliwe, siqinisekisa ukuvalwa kwejoyinti okungenasikhala. Siqeda ukungena komoya nokuphuma kwamanzi, sigcina ukusebenza okuzinzile kokungangeni manzi kanye nokumelana nesimo sezulu ukuze kubonakale isikhathi eside ngaphandle.

Ukumelana Nesimo Sezulu Esiphezulu Nokugqwala
Uhlelo lokumboza ngensimbi olunombala wekhwalithi ephezulu lumelana nokugqwala kwamakhemikhali, imisebe ye-ultraviolet kanye nokuguga kwezinto. Ivumelana nezimo zezimboni ezigqwalisayo kanye nezimo zangaphandle ezivulekile, iphaneli ifinyelela impilo yesevisi yeminyaka eyi-15-30 ngaphansi kwezimo zokusebenza ezijwayelekile.

Ukulungiswa Okugcwele Nokusebenza Kahle Kokwakha Okuphezulu
Wonke amaphaneli akhiwe kahle futhi ahlanganiswe ngokuphelele efektri, esekela ukuhlanganiswa okuqondile endaweni. Iqeda ukuplasta kwendabuko, ukwakhiwa kwezitini kanye nezinqubo zokwelapha ezishisayo nezingenamanzi, yenza kube lula kakhulu ukuhamba komsebenzi wokwakha futhi inciphise umjikelezo wephrojekthi ngaphezu kuka-50%.

4. Imininingwane Ejwayelekile kanye Nedatha Yobuchwepheshe

Izindinganiso Zokusebenza: GB/T 23932, GB 8624
Imibhalo Yokufaneleka: Imibiko yokuhlolwa kwe-acoustic kanye nokumelana nomlilo okugcwele iyatholakala
Ubukhulu obutholakalayoUsayizi: 50mm, 75mm, 100mm, 150mm, 200mm
Ububanzi Obusebenzayo ObujwayelekileUbubanzi: 950mm, 1150mm
Ubukhulu Beshidi Lensimbi: 0.25mm–0.6mm (okungenziwa ngezifiso ngokugcwele)
Inketho Yokumboza Nokumboza: I-DC51D / S250GD galvanized & aluzinc substrate; i-PE / HDP / PVDF engamelana nesimo sezulu ngokuzithandela
Ubude Ngokwezifiso: Ubude obujwayelekile obuphezulu buyi-12m; ubude obukhulu buyatholakala ngelungiselelo elikhethekile lokuhamba
Uhlobo lwephrofayela: Iphaneli yodonga oluyisicaba, iphaneli yophahla oluhlanganisiwe, iphaneli yophahla olufihliwe
Umthamo Womthwalo Ofanayo: ≥1.5kN/㎡ (ukusebenza kuyahlukahluka ngobukhulu bephaneli kanye nobubanzi bayo)
Ukuqhuba Okushisayo≤0.043 W/(m·K) @25℃
Ubuningi Be-Glass Wool Core: ≥64kg/m³
Ukusebenza kwe-Acoustic: Inkomba yokunciphisa umsindo enesisindo i-Rw ≥30dB (ubukhulu obuyi-100mm, i-ISO 717-1 kanye ne-GB/T 19889); I-Coefficient Yokunciphisa Umsindo i-NRC ≥0.8 (ASTM C423)
Isilinganiso Somlilo: I-GB 8624 Class A Ayishisi (ayinantuthu, ayinabo ubuthi)

5. Izimo Zokusebenza

Amaphrojekthi Okunciphisa Umsindo Ezimbonini: Indawo ebiyelwe odongeni nasophahleni yamakamelo emishini yemishini, ama-workshop athule kanye nezitshalo zezimboni ezinomsindo omkhulu.

Izakhiwo Zensimbi Ezinkulu: Izinhlelo zokubopha odongeni nophahla zobungcweti zezimboni zezimboni kanye nezindawo zokugcina impahla.

Izakhiwo Zomphakathi Nezebhizinisi: Amaphaneli odonga nophahla angangeni msindo ezakhiweni zamahhovisi, izinkundla zemidlalo kanye nezitolo ezinkulu.

Ubunjiniyela Bokuhlukanisa Umlilo: Izindonga zegumbi lomlilo, izindawo zokuvala umlilo kanye nezindawo zokuvala umlilo ezakhiweni.

Amaphrojekthi Okushisa Kwesikhashana Nawokuqhubekayo: Izakhiwo zesiza ezakhiwe kusengaphambili, amashede okuvikela ezolimo kanye nezakhiwo ezivamile zokuvala ezihlala zifudumele.

Amaphrojekthi Okuvimbela Umsindo Wangaphandle: Izindonga zokuvimbela umsindo emgwaqweni omkhulu kanye nezindawo zokuvala umsindo zangaphandle zefektri.

6. Indlela Yokufaka Ejwayelekile

Iphaneli isebenzisa ukuhlanganiswa okujwayelekile kokuxhumana kolimi nomgogodla wesilisa nowesifazane ngezesekeli ezihambisanayo, okwenza kube isinyathelo esisodwa ngaphandle kokwelashwa kwesibili endaweni.

Ukufakwa Kwephaneli Yodonga: Ngemva kokuhlanganiswa kolimi nomgodi okuqinile, lungisa amaphaneli kuma-purlin ensimbi ngezikulufo zokuzithinta ezilwa nokugqwala noma zensimbi engagqwali ngesikhala esiphezulu esingu-300mm. Ukulinganiswa kwezinga le-laser kuqinisekisa ukufakwa kodonga oluqondile, oluyisicaba noluqinile.

Ukufakwa Kwephaneli Yophahla: Sebenzisa uhlelo lokufulela olufihliwe olunezibambo ezifihliwe ukuze ufinyelele indawo yangaphandle engenazikulufo. Imichilo yokuvala ehambisanayo kanye nesivalo esivikela isimo sezulu kufakwa kuzo zonke izihlanganisi ezihambisanayo ukuze kuvikelwe amanzi kabili futhi kubukeke kahle.

Ukucubungula Okuningiliziwe Okuwusizo: Kufakwe izindwangu zokuhlobisa ezisekelayo ezenziwe ngokwezifiso zama-eve, ama-ridge, ama-gable kanye namakhona angaphakathi nangaphandle ukuqinisekisa ukungabi nomoya okuhlanganisiwe, ukuqina kwamanzi, ukuvimbela ukushisa kanye nokusebenza kahle kwe-acoustic.

Ukuvikela Ukusika Nokulwa Nokugqwala: Sebenzisa isaha lamazinyo amancane noma ukusika ngokunemba kwe-plasma ukuze ugweme ukulimala kwe-core fiber. Zonke izingxenye ezisikiwe zimbozwe nge-primer ecebile nge-epoxy zinc ukuze kulungiswe ukugqwala ukuze kwandiswe impilo yenkonzo yephaneli iyonke.

Isaziso Sokwakha: Imicu yoboya bengilazi ingantanta ngesikhathi sokusika nokufaka. Kudingeka imishini yokuzivikela ejwayelekile ukuqinisekisa ukusebenza okuphephile kokwakha.

7. Imibuzo Evame Ukubuzwa

Umbuzo 1: Iyini isilinganiso somlilo saleli phaneli lesangweji le-glass wool?

A1: Ihambisana nezindinganiso ze-GB 8624 Class A ezingashi. Ayikhiqizi intuthu noma intuthu enobuthi futhi ivimbela ngempumelelo ukusabalala kwamalangabi, ilungele ukwahlukanisa umlilo kanye namaphrojekthi anengozi enkulu yomlilo.

Q2: Isebenza kanjani i-insulation yomsindo?

I-A2: Ifaka i-NRC ≥0.8 kanye ne-Rw ≥30dB ngobukhulu obungu-100mm. Ilungele amakamelo emishini, ama-workshop anomsindo kanye namaphrojekthi okuvimbela umsindo wangaphandle.

Q3: Ingabe osayizi nezinto zeshidi lensimbi zingenziwa ngezifiso?

A3: Yebo. Sinikeza ubukhulu nobubanzi obujwayelekile obuhlukahlukene. Ubude obungokwezifiso, izisekelo zensimbi kanye nokwembozwa kwendawo konke kuyatholakala ukuze kuhambisane nezidingo ezahlukahlukene zephrojekthi.

8. Isifinyezo Somkhiqizo

Iphaneli Yesangweji Yengilazi Yensimbi Enombala iyinto yokwakha esezingeni eliphezulu ehambisana nezindinganiso zikazwelonke ze-GB/T 23932 kanye ne-GB 8624. Ifakwe i-core ye-glass wool engashisi engu-≥64kg/m³, ihlanganisa ukuphepha komlilo okuvelele, ukumuncwa komsindo okuphezulu (Rw≥30dB, NRC≥0.8) kanye nokusebenza okuzinzile kokushisa (ukuqhuba ukushisa ≤0.043W/(m·K)). Iqukethe isakhiwo esilula, isimo sezulu esihle kakhulu kanye nokumelana nokugqwala, kanye nokuhlanganiswa okusheshayo okwenziwe ngaphambili, leli phaneli lisebenza kabanzi ekuvalweni kwesakhiwo sensimbi, ukwahlukanisa umlilo wesakhiwo kanye namaphrojekthi obunjiniyela bokunciphisa umsindo ngaphakathi nangaphandle.
