I-C-Beam | I-C Purlin Ebandayo Efakwe I-Glass Efakwe I-Glass Yokusekela Uphahla, Udonga kanye ne-PV

1. Ukubuka Konke Komkhiqizo

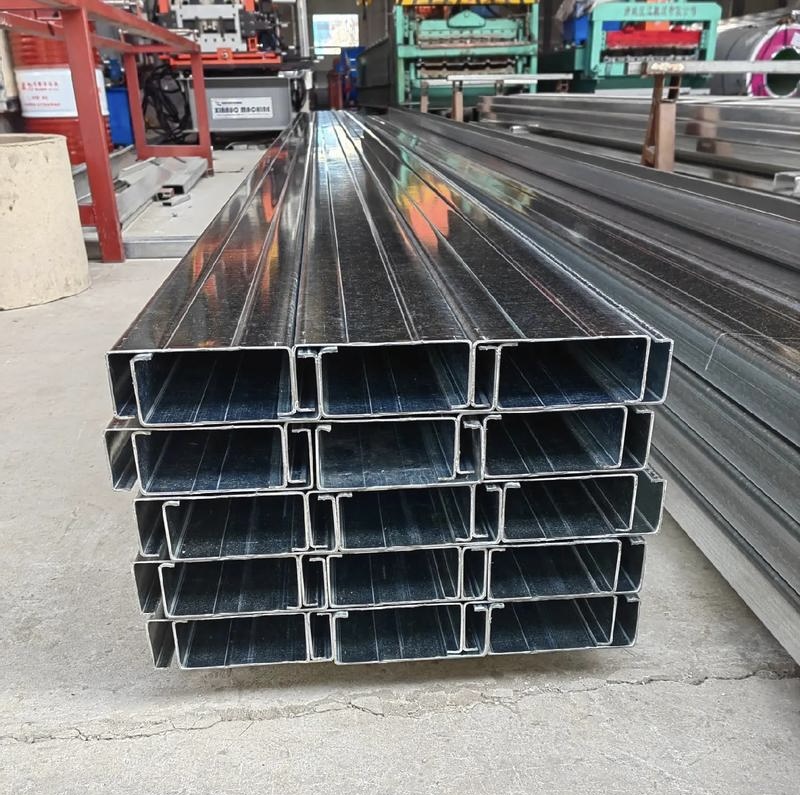

I-C-Beam, eyaziwa nangokuthi i-C-channel noma i-C purlin, iyinsimbi yokulinganisa ukukhanya kwesiteshi esenziwe ngomumo obandayo. Yakhiwe ngemicu yensimbi esezingeni eliphezulu ekushiseni okuzungezile, lo mkhiqizo wenziwa ngokuhambisana ngokuqinile namakhodi kazwelonke e-GB/T 6725-2017 kanye ne-GB 50018 wezakhiwo zensimbi ezenziwe ngomumo obandayo ezinodonga oluncane. Iqukethe ukunemba okunembile kobukhulu, ukwakheka kwesigaba okuhlanzekile kanye nokucindezeleka okusele kwe-zero welding, isebenza njengendlela elula elungiselelwe kunensimbi yesiteshi evamile egoqekile eshisayo.

Amabanga ezinto ezijwayelekile ahlanganisa i-Q235B ne-Q355B. Izinhlobo zokusebenza okuphezulu ezenziwe ngokwezifiso ziyatholakala uma ziceliwe, kufaka phakathi insimbi engangenisi ukushisa okuphansi ye-Q355NL, insimbi eshintshashintshayo ye-Q355GNH kanye namazinga ensimbi engagqwali. Isetshenziswa kabanzi ezimbonini zezimboni, ezindaweni zokugcina izinto, eziteshini zikagesi ze-photovoltaic kanye nasezindlini zensimbi zikamasipala ezenziwe ngaphambilini, i-C-beam isebenza njengephrofayili yesibili ethembekile yokuthwala umthwalo kanye ne-enclosure yezinhlelo zokwakha insimbi elula.

2. Imininingwane kanye namapharamitha obuchwepheshe

Amamodeli Ajwayelekile Akhona Esitokweni

Uchungechunge oluphelele losayizi abajwayelekile abakhona esitokweni: C80, C100, C120, C140, C160, C180, C200, C220, C250, C300. Lesi sibalo sibonisa ukuphakama kwewebhu ye-beam, isibonelo, i-C80 ibhekisela ekuphakameni kwewebhu okungu-80mm.

Ububanzi Bobukhulu

Ukuphakama kwewebhuUbubanzi: 80mm–300mm
Ububanzi beFlange: 40mm–80mm
Umphetho Onezindebe: 15mm–20mm (osayizi bemiphetho ngokwezifiso bayatholakala)
Ubukhulu Bodonga: 1.5mm–4.0mm; amapuleti amakhulu angaphezu kuka-4.0mm asekelwa ngokubonisana ngobuchwepheshe
Ubude Obujwayelekile: 6m, 9m, 12m. Ukusika okwenziwe ngokwezifiso ngobude obungaguquki, ukubhoboza ngokunemba kanye nokucubungula okunesimo esikhethekile kuyatholakala ukuze kufane nemiklamo yesakhiwo engeyona ejwayelekile.

Ukwelashwa Kokulwa Nokugqwala Okungaphezulu

I-Hot-dip egayiwe: Ukwembozwa kwe-zinc okunezinhlangothi ezimbili ≥180g/㎡, okunobukhulu obuphakathi kohlangothi olulodwa obufika ku-12.7μm. Kunikeza ukusebenza okuzinzile kokulwa nokugqwala, kusekela iminyaka engu-15-20 yenkonzo yangaphandle ngaphansi kwezimo ezijwayelekile.

Isimbozo se-Aluzinc (AZ150): Kukhiqizwa ngokwezinga le-ASTM A792 nge-55% aluminium-zinc alloy coating. Inezici ezinhle kakhulu zokumelana ne-asidi, i-alkali kanye nokushisa okuphezulu, ilungele ukufuthwa kukasawoti ogwini kanye nezimo ezisindayo zezimboni.

Upende Owenziwe Ngokwezifiso: Yamukela i-primer ecebile nge-epoxy zinc kanye nesistimu yokulwa nokugqwala ehlanganisiwe ye-topcoat. Isebenza kahle kakhulu ekusetshenzisweni kwesakhiwo sangaphakathi ngezinketho zombala ezingenziwa ngokwezifiso ukuze kuhlangatshezwane nezidingo zobuhle bephrojekthi.

3. Isevisi Yokucubungula Okujulile Ngokwezifiso

Sihlinzeka ngokucubungula okujulile okune-stop eyodwa kwe-C-beams ezenziwe ngokwezifiso. Lonke uhlelo lokusebenza luhlanganisa ukusika okuqondile kwe-CNC, ukubhoboza okunembile kwezinhlobo eziningi (imigodi eyindilinga, imigodi enezikhala, imigodi ye-elliptical) okuhambisana nokucaciswa okuhlukahlukene kwebholidi, kanye nokugoba, ukuqondisa, ukugqoka okulwa nokugqwala kanye nokupakisha okuqediwe okujwayelekile. Yonke imikhiqizo eqediwe ilawulwa ngaphakathi kokubekezelelana okuvamile kwe-±1.0mm, ngokubekezelelana okunembile okuphezulu kwe-±0.5mm okutholakala kumaphrojekthi asezingeni eliphezulu. Izingxenye ezenziwe ngaphambilini zisekela ukuhlanganiswa kwebholidi ngqo endaweni, kususe ukusika kwesibili kanye nokucubungula ukuze kuthuthukiswe ukusebenza kahle kokwakha.

4. Izinzuzo Zomkhiqizo Oyinhloko

Isakhiwo Esilula Nezindleko Eziphansi Eziphelele
Uma kuqhathaniswa nensimbi yesiteshi esigoqekile esishisayo, i-C-beam yehlisa isisindo sayo ngaphezu kuka-30% ngenkathi igcina umthamo olingana noma ophakeme wokuthwala umthwalo. Yehlisa ngempumelelo umthwalo wokwakha ongapheli, yehlisa ukucindezeleka kwesisekelo futhi yehlisa izindleko zokwakha iphrojekthi iyonke.

Ukusebenza Okuqinile Kwemishini Nokusebenza Kahle Kokuthwala Okuphezulu
Ukwakheka okuhlanganisiwe okubandayo kunikeza ububanzi obukhulu bokujiya kanye nokumelana okuhle kakhulu nokugoba kanye nokugoba. Kuvumela ukwakheka kwesikhala esikhulu se-purlin, kunciphisa ukusetshenziswa kwensimbi iyonke futhi kuthuthukisa ukusatshalaliswa kokucindezeleka kwesakhiwo.

Ukufakwa Okulungisiwe Nokwakhiwa Okusheshayo
Zonke izingxenye ezijwayelekile nezenziwe ngokwezifiso zibhotshozwa kusengaphambili futhi zenziwe kusengaphambili efektri. Ukwakhiwa kwendawo yonke kusebenzisa ukuhlanganiswa kwebholidi okumsulwa ngaphandle kokushisela endaweni noma ukwelashwa kwesibili okungashisi, okunciphisa kakhulu umjikelezo wephrojekthi futhi kuthuthukise ukuphepha kokwakha.

Izimo eziningi Ukulwa nokugqwala kanye nokuzivumelanisa nezimo okuqinile
Izixazululo zokwelapha ubuso ezihlukahlukene zivumelana nezimo ezomile zangaphakathi nezwe, ezinomswakama zezimboni kanye nezifutho zikasawoti zasogwini. Iphrofayili igcina ukusebenza okuzinzile ngokomzimba ngaphandle kokugqwala, ukuguquka noma ukwehluleka kwesakhiwo ngesikhathi sokusebenza ngaphandle isikhathi eside.

Ukunemba Okuphezulu Nokushintshana Okuhle
Ukubekezelelana kokukhiqiza okuhlangene kanye nosayizi ojwayelekile kuqinisekisa ukushintshana okukhulu kwezingxenye. Umkhiqizo uhambisana kahle nezinhlelo zokwakha insimbi elula esetshenziselwe kusengaphambili kanye namaphrojekthi amakhulu okusekela i-photovoltaic, okusekela ukwakhiwa okujwayelekile kanye nokwe-modular.

5. Izimo Zokusebenza

Izakhiwo Zensimbi YezimboniIzakhiwo Zensimbi Yezimboni: Zisebenza njengezinto zokuhlobisa ophahleni, amabhande odonga kanye nohlaka lwesibili lokusekela lwezindawo zokusebenzela zasefektri, izindawo zokugcina impahla zezimboni kanye nezakhiwo zezokuthutha. Siphinde sinikeze ochwephesheI-TPO Membrane Engangeni Manzingezixazululo zokuvikela uphahla.

Amaphrojekthi Amandla Amasha e-PV: Isetshenziswa kabanzi ezingxenyeni ezithwala umthwalo kanye nezisekelayo zama-bracket e-photovoltaic ophahleni kanye nezinhlelo zeziteshi zamandla elanga ezifakwe phansi.

Izakhiwo Zensimbi Ekhanyayo Ezakhiwe Ngaphambili: Kusebenza kumafreyimu amakhulu, izakhiwo zodonga nophahla lwezindlu ezincane zensimbi, izindlu zamakhonteyina kanye nezakhiwo ezisetshenziswayo ezilungisiwe.

Izakhiwo Ezisekela Indlu Yokugcina Impahla Nezemishini: Kufanelekela ozimele be-rack yokugcina izinto, izisekelo zesisekelo semishini kanye nezakhiwo ze-beam yesibili zamapulatifomu okusebenza kwensimbi.

Ubunjiniyela Bokusiza Bamasipala: Kuhle kakhulu kuma-canopy angaphandle, izindawo zokupaka izimoto, imihubhe yabahamba ngezinyawo, izindawo zokupaka esiteshini samabhasi kanye namaphrojekthi amancane okwakhiwa kwensimbi.

6. Ukulethwa, Ukupakisha kanye Nokusekelwa Kwesevisi

Ukulethwa Kwesitoko: Uhla oluphelele lwe-C-beams ejwayelekile ehlanganisiwe lukhona esitokweni esanele, kanti ukulethwa kuhlelwe zingakapheli izinsuku ezingu-2-5 zokusebenza.

Isikhathi Sokuhola Sokucubungula Ngokwezifiso: Ubukhulu obungokwezifiso, ukubhoboza okukhethekile kanye nemikhiqizo engalingani nosayizi ojwayelekile kuthatha izinsuku zokusebenza eziyi-7-12 ngemuva kokuqinisekiswa kwe-oda.

Isixazululo Sokupakisha: Ukubopha okujwayelekile okune-skid reinforcement ukuvimbela ukuguguleka. Kusekela ukuthuthwa komhlaba wasekhaya kanye nokupakishwa kwezimpahla zasolwandle okuthunyelwa kwamanye amazwe okujwayelekile.

Ukuqinisekisa ikhwalithi: Izitifiketi zokuhlolwa eziphelele zemishini, imibiko yokuhlolwa kwezingqimba ezihlanganisiwe kanye nesethi ephelele yemibhalo yokufaneleka kwekhwalithi inikezwa ukusekela ukuhlolwa nokwamukelwa kwephrojekthi yomhlaba wonke.

7. Imibuzo Evame Ukubuzwa

Q1: Uyini umehluko phakathi kwe-C-beam kanye nensimbi yesiteshi evamile egoqekile eshisayo?
I-A1: I-C-beam iyinsimbi elula eyakhiwe ngodonga olubandayo enobukhulu obuncane enesisindo esilula kanye nezindleko eziphansi, esetshenziselwa kakhulu ukuvala isakhiwo kanye nezakhiwo zokusekela zesibili. Isekela ukwakheka kwembobo ebhoboziwe ngaphambilini yokuhlanganisa ngokushesha i-bolt. Insimbi yesiteshi yendabuko egoqeka ngokushisa inokuqina okuphezulu kanye nesisindo esinzima, esetshenziswa kakhulu emithini emikhulu ethwala umthwalo kanye namakholomu.

Q2: Ungakwazi yini ukwenza ngokwezifiso ubude bomsebe kanye nezikhundla zembobo ngokwemidwebo?
A2: Yebo. Sisekela ukwenza ngokwezifiso okusekelwe ekudwebeni okugcwele, okuhlanganisa ubude bokusika obungahleliwe, isikhala semigodi esenziwe ngokwezifiso kanye nezikhundla ezikhethekile zemigodi. Konke ukucubungula okujulile kuqedwa efektri ukuze kufezwe ukufakwa okuqondile endaweni.

Q3: Yikuphi ukwelashwa kobuso okungcono kakhulu kokusetshenziswa ngaphandle?
A3: Ukufakwa kwe-galvanizing okuvamile kwe-hot-dip kusebenza ezindaweni ezivamile zangaphandle. Ezindaweni ezisogwini nasezindaweni ezigcwele ukugqwala okukhulu kwezimboni, ukufakwa kwe-aluzinc noma ukufakwa kwe-zinc ephezulu (≥275g/㎡) kunconywa ukuze kusetshenziswe isikhathi eside.

Q4: Ungakhetha kanjani phakathi kwe-C purlin ne-Z purlin?
I-A4: I-C purlin ifanelekela imithambeka yophahla ≤5°, inesakhiwo esilula kanye nokufakwa okulula. I-Z purlin isekela ukuxhumana okugqagqene kokuphela kokusebenza okuqhubekayo kokunwebeka, ivumelane nemithambeka yophahla kusukela ku-5° kuya ku-20°. Ukukhetha kokugcina kufanele kuhambisane nomklamo wesakhiwo wangempela kanye nemingcele yephimbo lophahla.

8. Isifinyezo Somkhiqizo

Ikhiqizwa ngokwezindinganiso zikazwelonke ze-GB/T 6725-2017 kanye ne-GB 50018, i-C-beam yethu ithatha i-Q235B kanye ne-Q355B njengezinto ezijwayelekile, ezine-stainless hot ephansi, ezimelana nesimo sezulu kanye nensimbi engagqwali ongakhetha kuzo ngezimo zokusebenza ezikhethekile. Le nsimbi ekhanyayo eyenziwe ngokubandayo enembile kakhulu inomklamo olula, ukumelana okuhle kakhulu nokugoba kanye nokusebenza okuzinzile kwesakhiwo. Ifakwe ngezindlela eziningi zokwelapha zokulwa nokugqwala kanye nezinsizakalo zokucubungula okujulile kwefektri eyodwa, isetshenziswa kabanzi kuma-purlin ophahla lwesakhiwo sensimbi, amabhande odonga kanye nezinhlelo zokusekela ze-photovoltaic, esebenza njengesixazululo sesakhiwo esingabizi futhi esithembekile samaphrojekthi ezimboni zomhlaba wonke, amandla amasha kanye namaphrojekthi kamasipala asetshenzisiwe.
